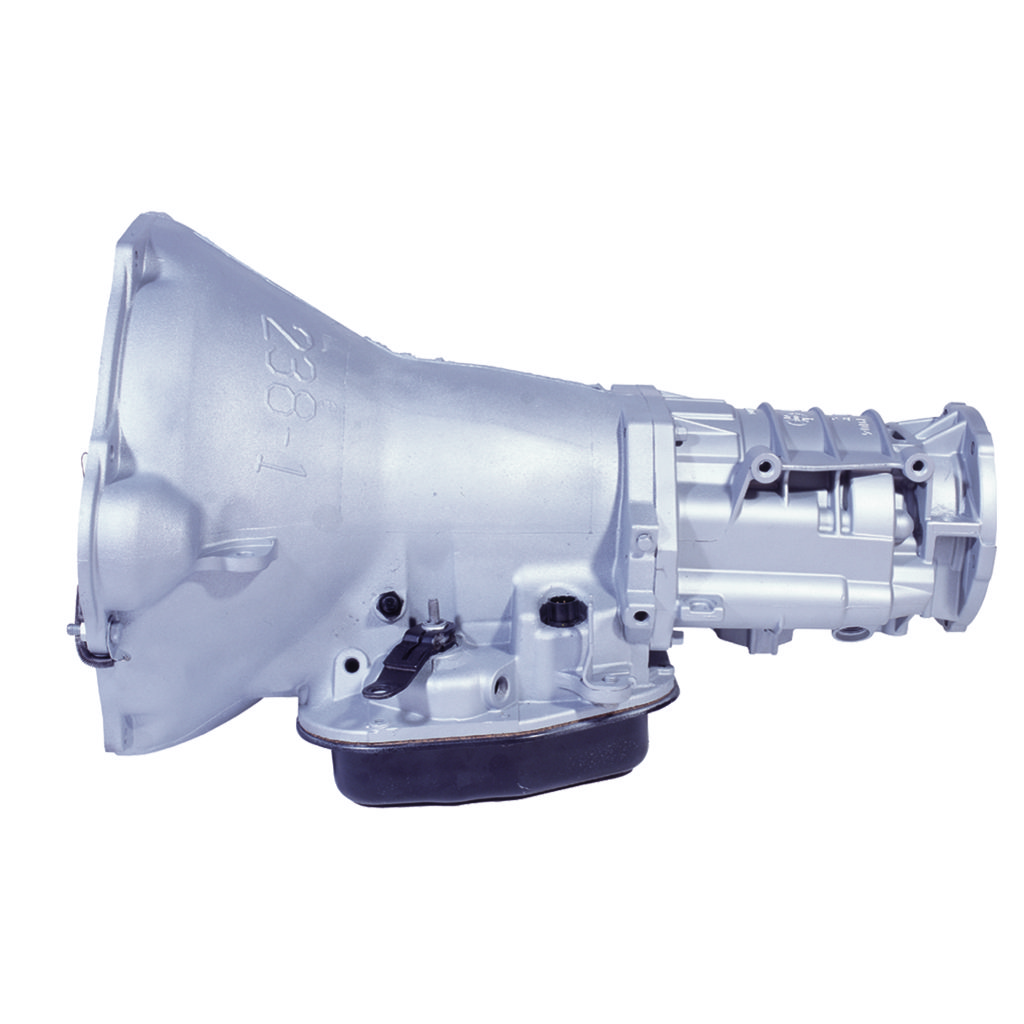

BD Diesel 1064194F Heavy Duty Performance Transmission – 4WD

Code: bd1064194F


In Stock



  • Installation Manuals (3)

    • All new bushings
    • New design valve body
    • Stock thrust washers replaced with roller Torrington bearings saves governor solenoids and reduces friction
    • Drilled intermediate shaft for increased lube
    • Modified manual valve for lube in all positions
    • 47RE transmissions upgraded with more rugged 48RE components
    • Clutch Count: OD 6
    • Clutch Count: OD DIRECT 10
    • New input shafts and hub
    • Pan adds 1qt extra oil capacity
    • Up to 80% higher clutch apply pressures over the stock unit
    • Pressure increase starts at much lower engine rpm’s and at lighter throttle pedal position movement
    • Light throttle shift firmness is also maintained
    • No shuttle shifting problems
    • Upgraded governor pressure transducer (47RE/48RE)
    • Upgraded governor solenoid – Twice the burst pressure than stock
    • Cooler line case saver in every transmission
    • Added heavy-duty clutches with up to 25% more material than stock
    • Machined forward (rear) beveled pressure plate
    • Machined overdrive brake (front & rear) pressure plate
    • Machined direct clutch (front) piston
    • High temp/energy Raybestos band
    • Billet band strut & anchor
    • Billet dual ring accumulator piston
    • BD auxiliary full flow filter kit for extra protection
    • Clutch Count: FORWARD 5
    • Fully rollerized geartrain
    • Clutch Count: DIRECT 6
    • Increase the durability of your drivetrain
    • Revised oil circuits
    • Handles up to 300% more power and torque than the stock transmission
    • Extra clutches and stronger internals
    • BD rigid aluminum heavy duty transmission pan
    • Pan reduces case flex
    • Pan reduces internal oil leakage
    • Pan heat-dissipating fins keep temperature down
    • Pan magnetic drain plug
    • Not warranted for Race or Sled Pull use
    • Each transmission is dyno tested



    • 36-Months
    • 150,000 Miles
    • 12-Months
    • 24,000 miles
    • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.



    Additional information

    Dimensions23.5 × 44.5 × 27.3 in

    Model Specific

    This part fits select models

    DodgeCummins 5.92003
    DodgeCummins 5.92004
