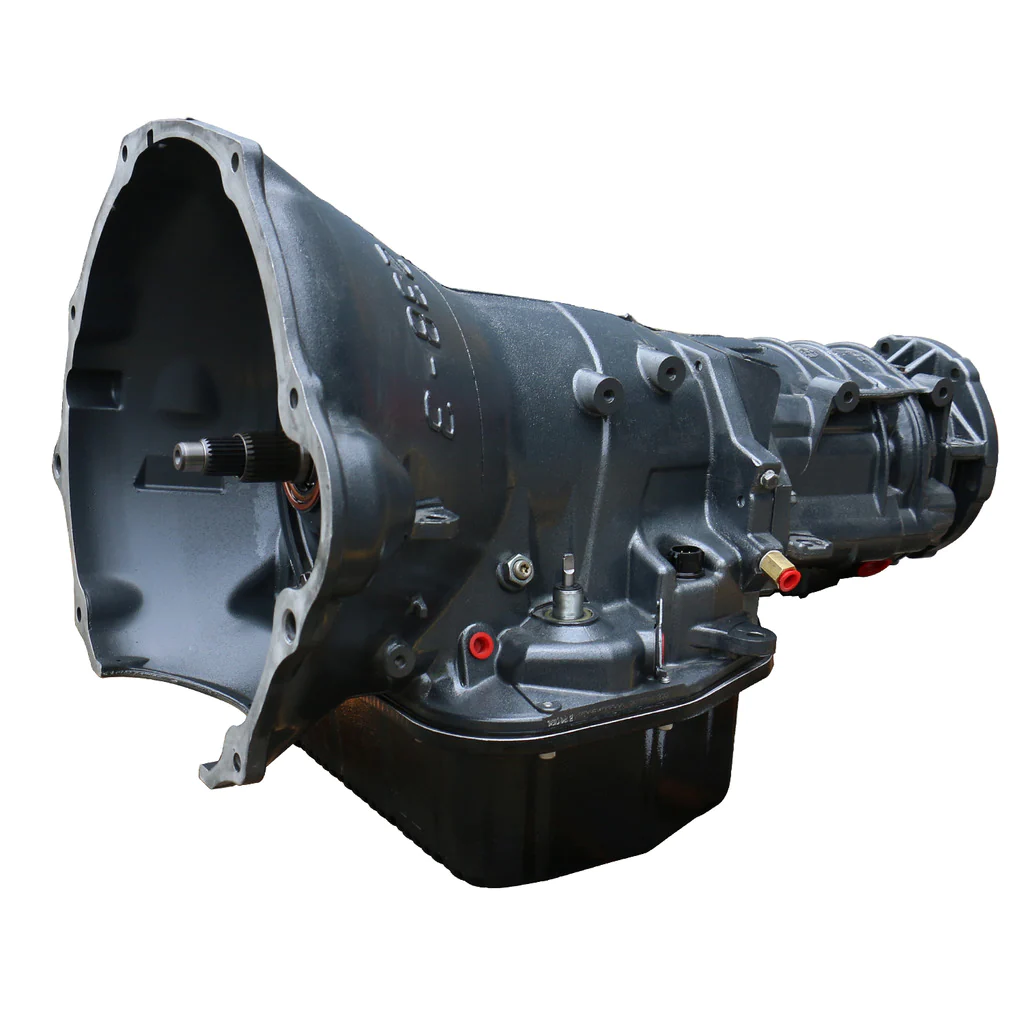

BD Diesel 1064232F Heavy Duty Performance Transmission – 2WD

• All new bushings
• New design valve body
• Stock thrust washers replaced with roller Torrington bearings saves governor solenoids and reduces friction
• Drilled intermediate shaft for increased lube
• Modified manual valve for lube in all positions
• 47RE transmissions upgraded with more rugged 48RE components
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• New input shafts and hub
• Pan adds 1qt extra oil capacity
• Up to 80% higher clutch apply pressures over the stock unit
• Pressure increase starts at much lower engine rpm’s and at lighter throttle pedal position movement
• Light throttle shift firmness is also maintained
• No shuttle shifting problems
• Upgraded governor pressure transducer (47RE/48RE)
• Upgraded governor solenoid – Twice the burst pressure than stock
• Cooler line case saver in every transmission
• Added heavy-duty clutches with up to 25% more material than stock
• Machined forward (rear) beveled pressure plate
• Machined overdrive brake (front & rear) pressure plate
• Machined direct clutch (front) piston
• High temp/energy Raybestos band
• Billet band strut & anchor
• Billet dual ring accumulator piston

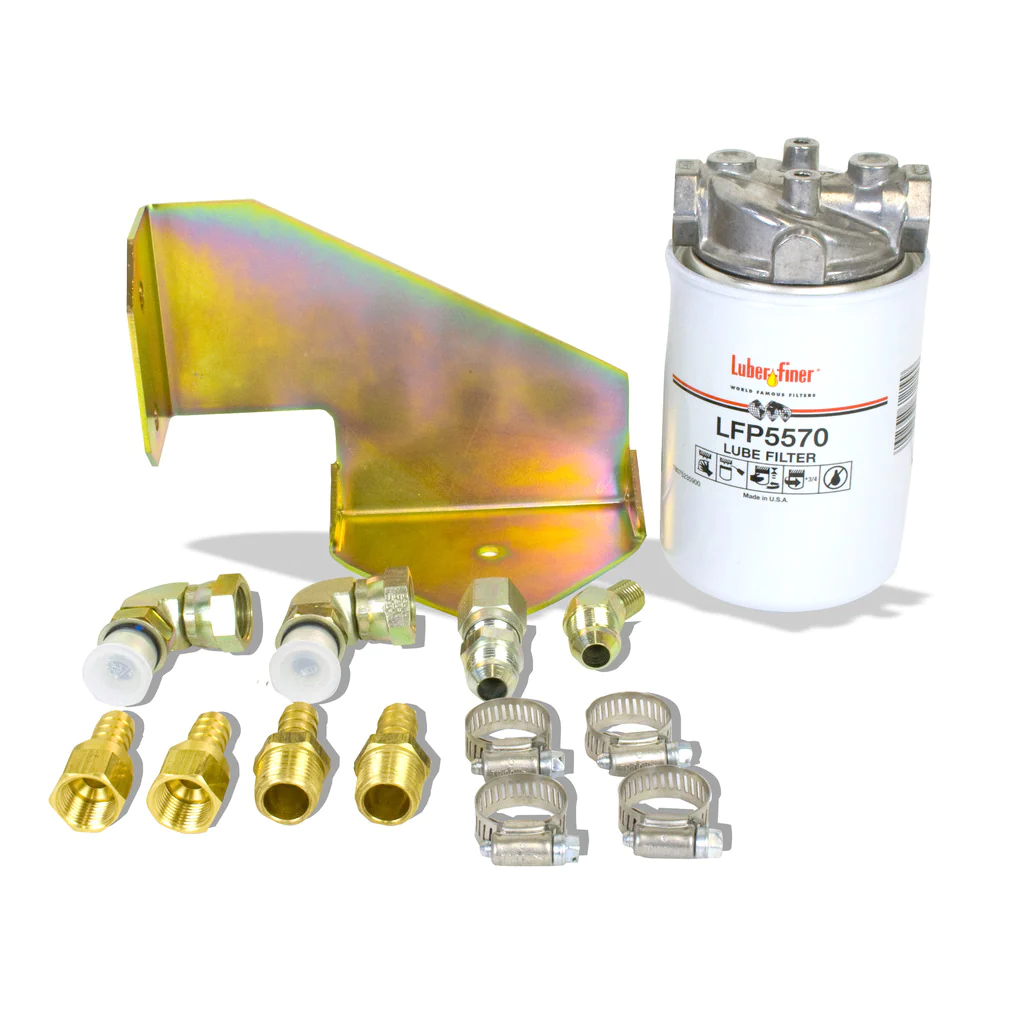

• BD auxiliary full flow filter kit for extra protection
• Clutch Count: FORWARD 5
• Fully rollerized geartrain
• Clutch Count: DIRECT 6
• Increase the durability of your drivetrain
• Revised oil circuits
• Handles up to 300% more power and torque than the stock transmission
• Extra clutches and stronger internals
• BD rigid aluminum heavy duty transmission pan
• Pan reduces case flex
• Pan reduces internal oil leakage
• Pan heat-dissipating fins keep temperature down
• Pan magnetic drain plug
• Not warranted for Race or Sled Pull use
• Each transmission is dyno tested

Warranty

Parts

• 36-Months
• 150,000 Miles

Labour

• 12-Months
• 24,000 miles

Note

• No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
